Multiphase pump skid – mounted unit

pump model: HWMPS450,

medium: oil, gas and water (gas content 40% – 99%)

temperature: 10 – 70 (unit not specified, assume ℃)

medium viscosity: 30 (unit not specified, assume cP)

flow rate: 200m³/h

pressure difference: 3.2 – 5.5 (inlet pressure 0.2 – 2.5, unit not specified, assume MPa)

NPSH: 2.5m

motor: 355KW

shaft power: 311KW

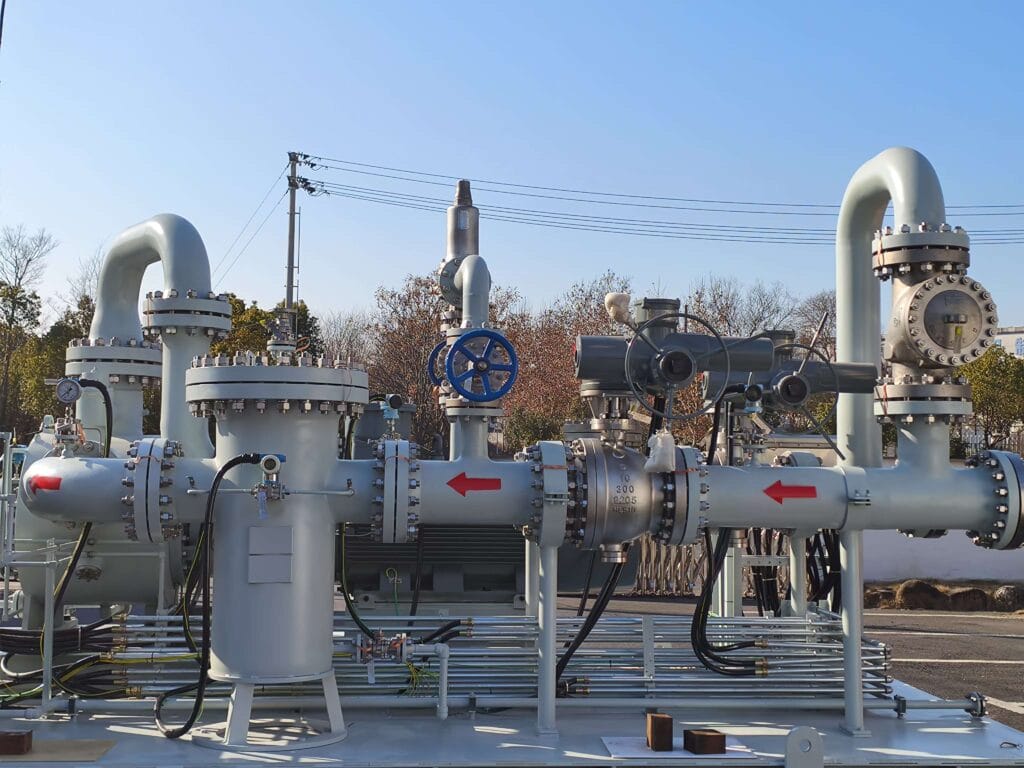

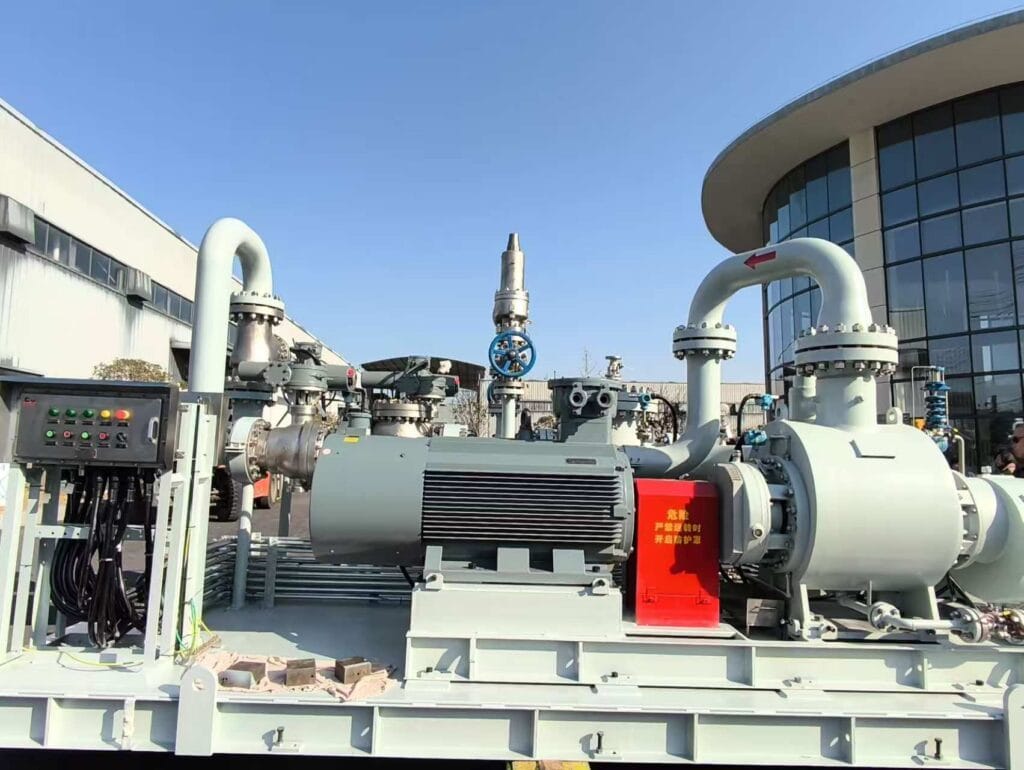

This is a twin screw multiphase pump skid for export. The equipment integrates numerous electrical control devices and high – precision sensors. Data is collected through the sensors, and the PLC electrical control system intelligently controls the equipment according to preset values. At the same time, the collected data can be remotely transmitted to the central control room and PC terminal, facilitating users to detect the equipment. The intelligent equipment can also promptly protect the equipment by disconnecting it under sudden working conditions. The medium can be transported through the bypass pipeline.
