Medium

Low pressure, corrosive or non-corrosive,lubricating or non-lubricating, low or high viscous medium

Parameters

capacity 1-150m³/h
viscosity 1-1.5×106cst
Temp. max 300℃
Pressure max 1.2Mpa
Rpm.max 1800rmp
Category:
ENQUIRY!
  • Next Product
  • W2GRN series twin screw pumps

Description

Working principle

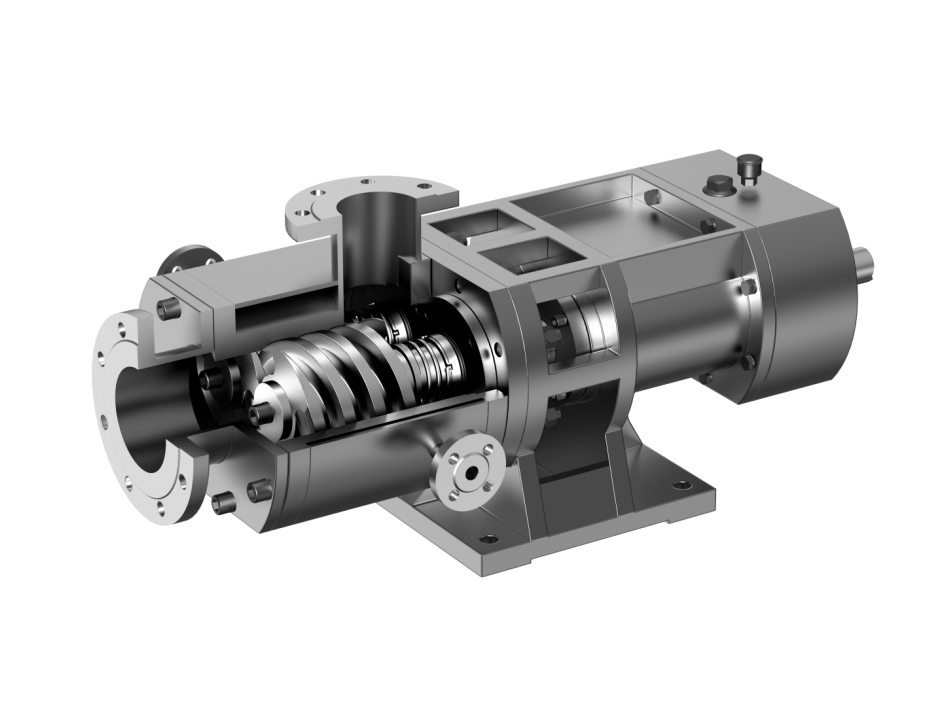

The twin screw pumps is a rotary positive displacement pump. It works by using two screws. These screws rotate along their axes to move materials efficiently.
Two non-contacting, intermeshing screws form sealed chambers with the pump housing. When the pump runs, these chambers carry materials steadily from the suction port to the discharge port.
Controlling the flow direction is easy. The pump’s unique design lets you reverse the shaft’s rotation. This simple step flips the material’s path.
This axial conveying keeps materials stable. There’s little pulsation during pumping. For shear-sensitive materials, this is a big plus. They face almost no extra stress. Their volume, appearance, and properties stay intact.

Features

1.cast bearing pedestal, welded pump body,compact structure,cost-efficient 5.specialized rotor, minimal pulse and NPSHr
2.various positions for inlet/outlet flange 6.low axial flow rate, strong self-priming
3.only two sets of mechanical seals, reduce leakage, lower maintenance cost 7.dry running permitted, maximize safe operating
4.timing gears transfer torque, low noise
